Retno Lola T70 MK3B Reproduction 3-Piece Knock-Off Wheel Set

Retno Lola T70 MK3B Reproduction 3-Piece Knock-Off Wheel Set

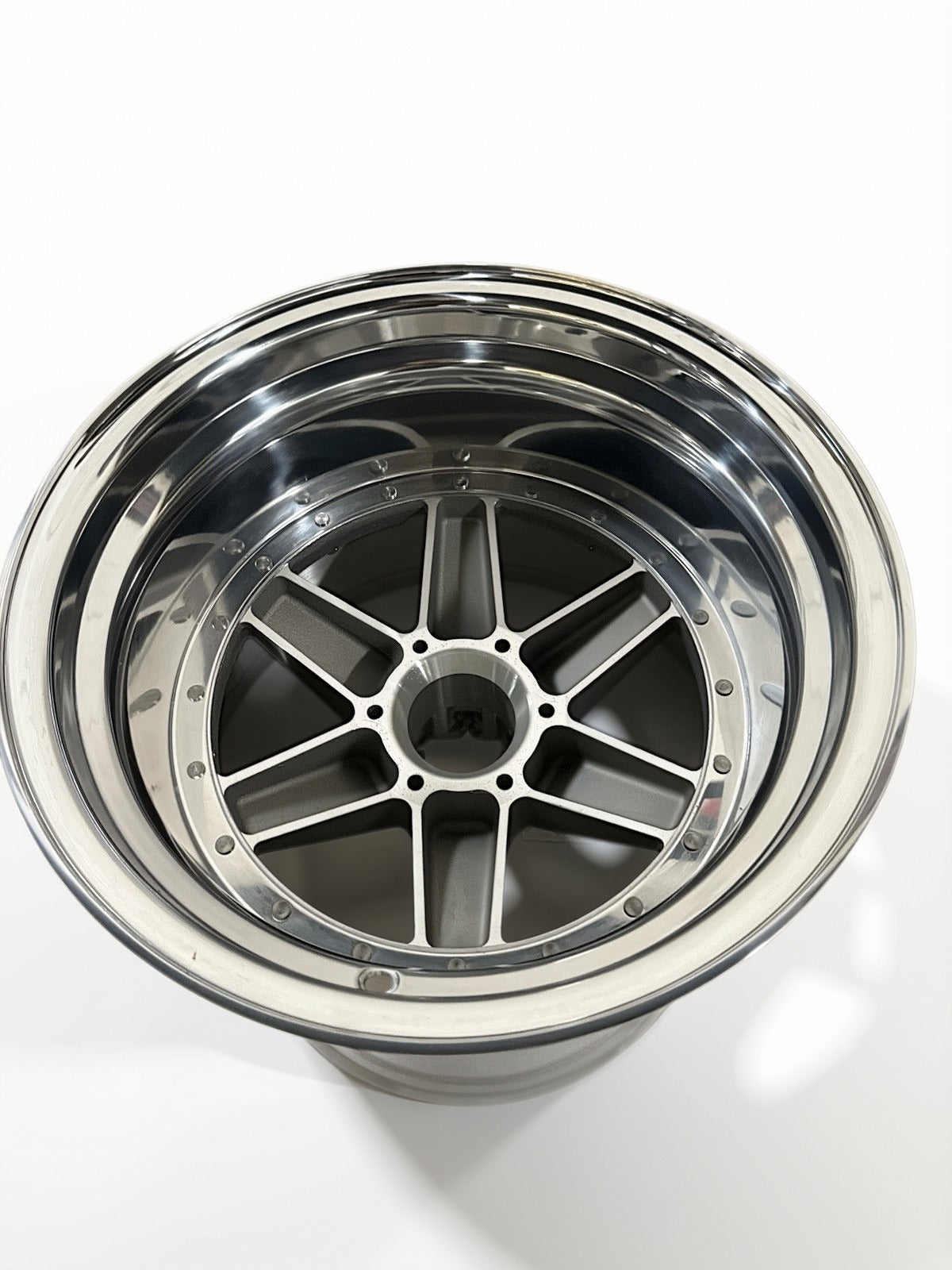

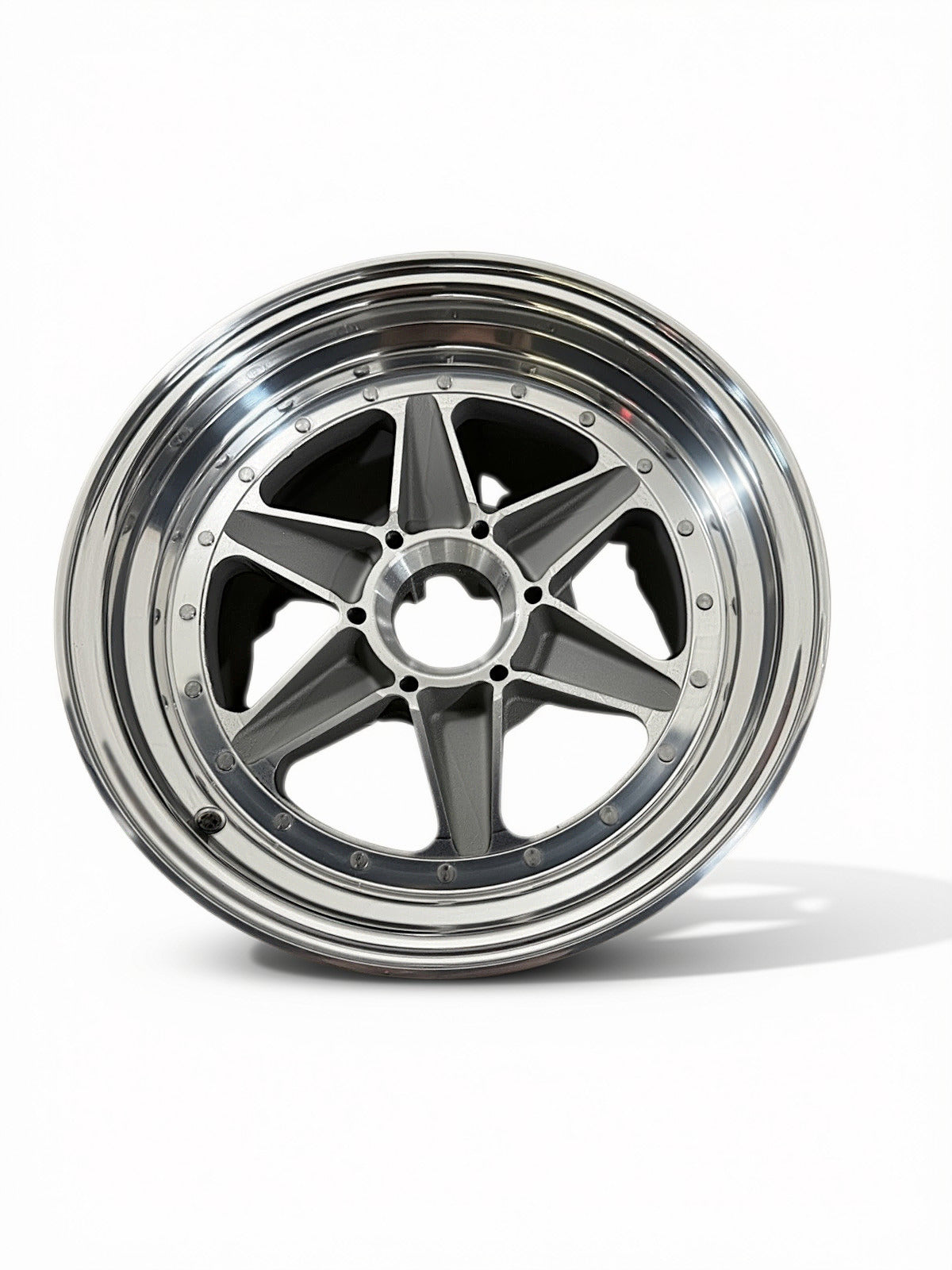

Bring authentic vintage racing style to your Lola T70 MK3B restoration or specialty racing build with the Retno Lola T70 MK3B Reproduction 3-Piece Knock-Off Wheel Set. Manufactured to replicate the original Lola T70 MK3B wheels in their dimensions, this four-wheel set combines period-correct styling with quality materials and precision machining.

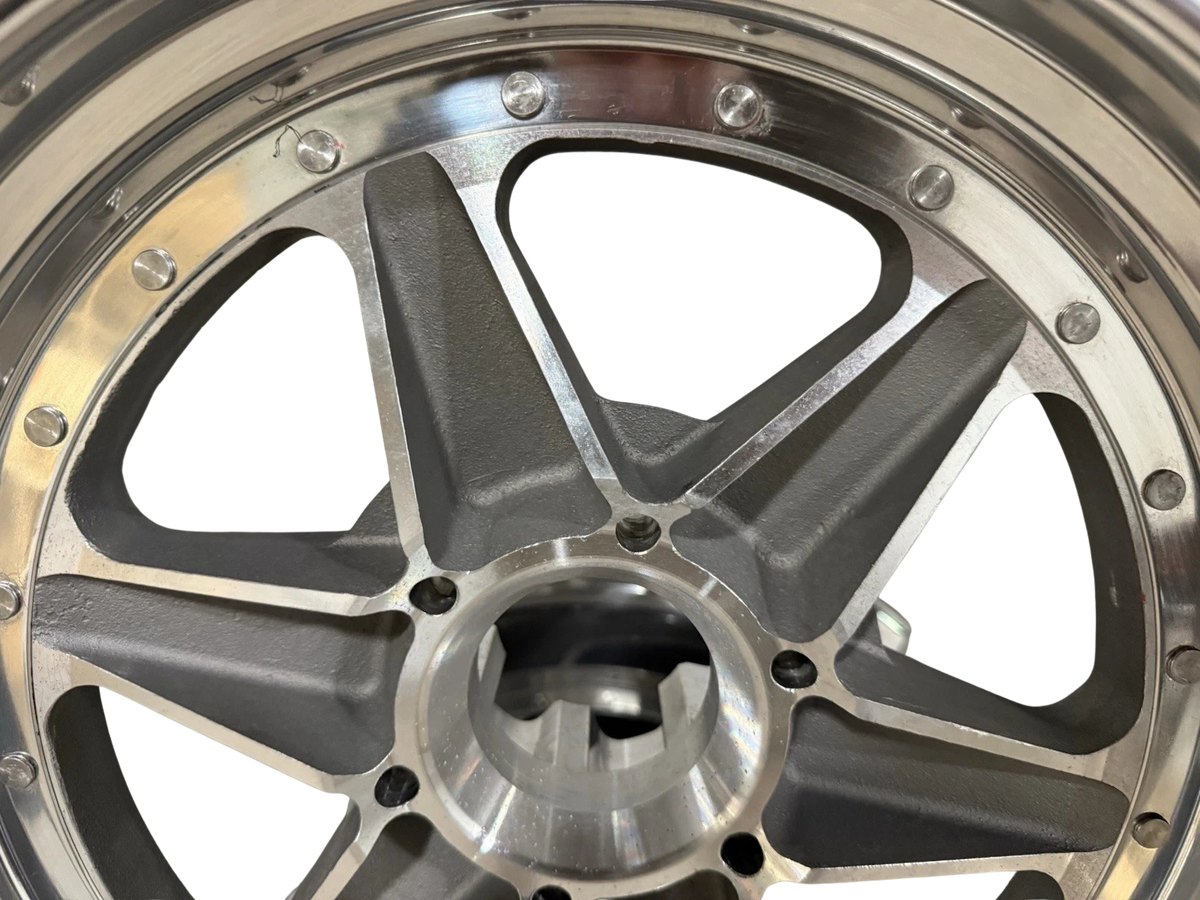

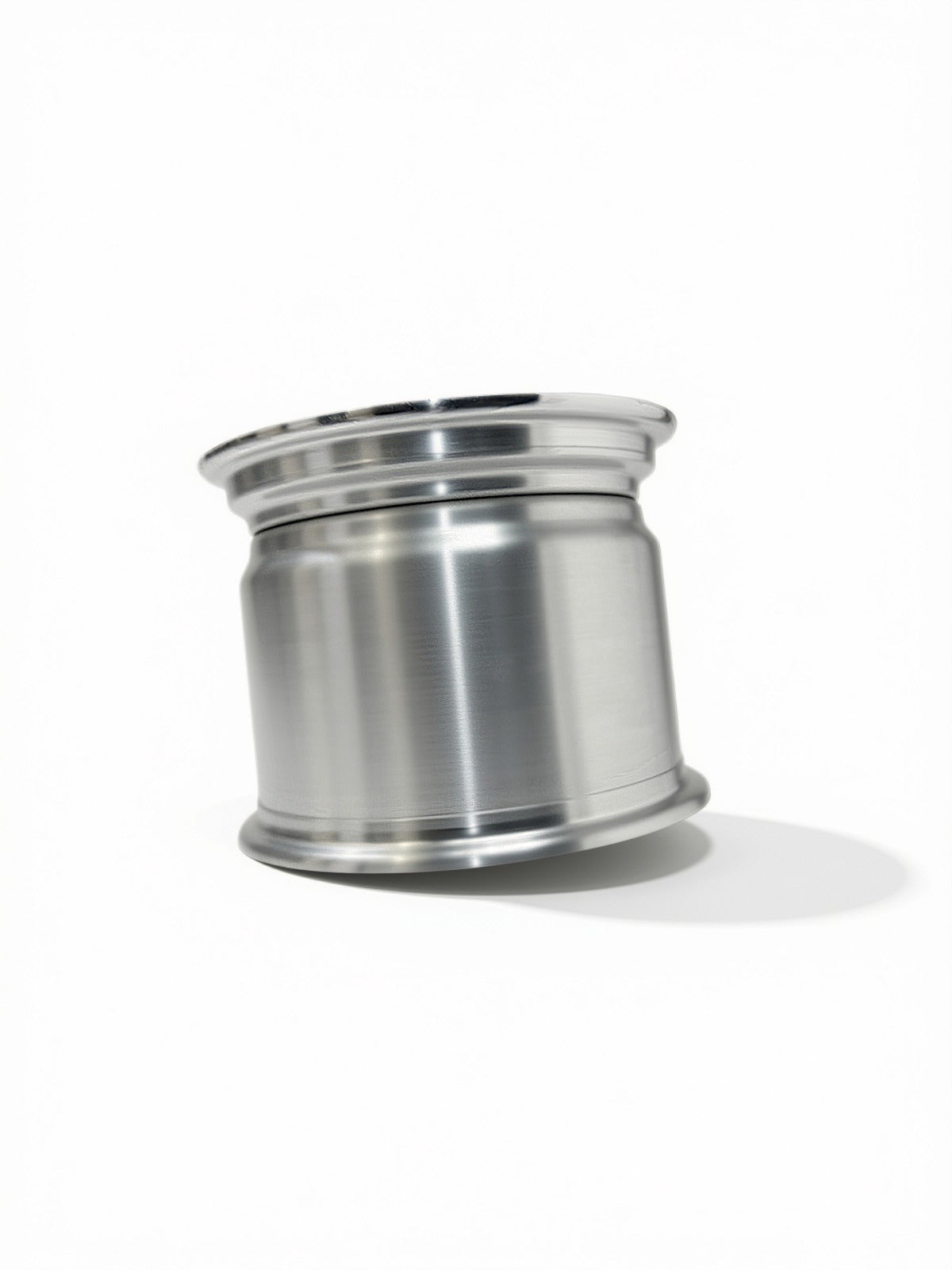

The wheel centers are made from high-quality A356 aluminum alloy, using sand-casting with a gravity-pressure casting process and T6 heat treatment. The rim halves are spun aluminum with a substantial 3/16-inch wall thickness, providing the classic construction and appearance associated with these iconic racing wheels.

Retno's proprietary stainless steel hardware and reusable sealing gaskets are designed to provide a secure seal without the excessive silicone caulking often associated with multi-piece wheel assemblies. Each wheel is checked for dimensional accuracy and machined and assembled in the USA.

With more than 15 years of experience producing these and other specialty wheels, Retno serves vintage racers, restorers, and specialty car builders seeking faithful reproductions of classic racing components.

Features & Benefits

• Authentic Reproduction: Exact dimensional copies of the original Lola T70 MK3B wheels

• Three-Piece Construction: Multi-piece design with aluminum centers and spun aluminum rim halves

• Premium Aluminum Centers: A356 aluminum alloy, sand-cast using a gravity-pressure casting process and T6 heat-treated

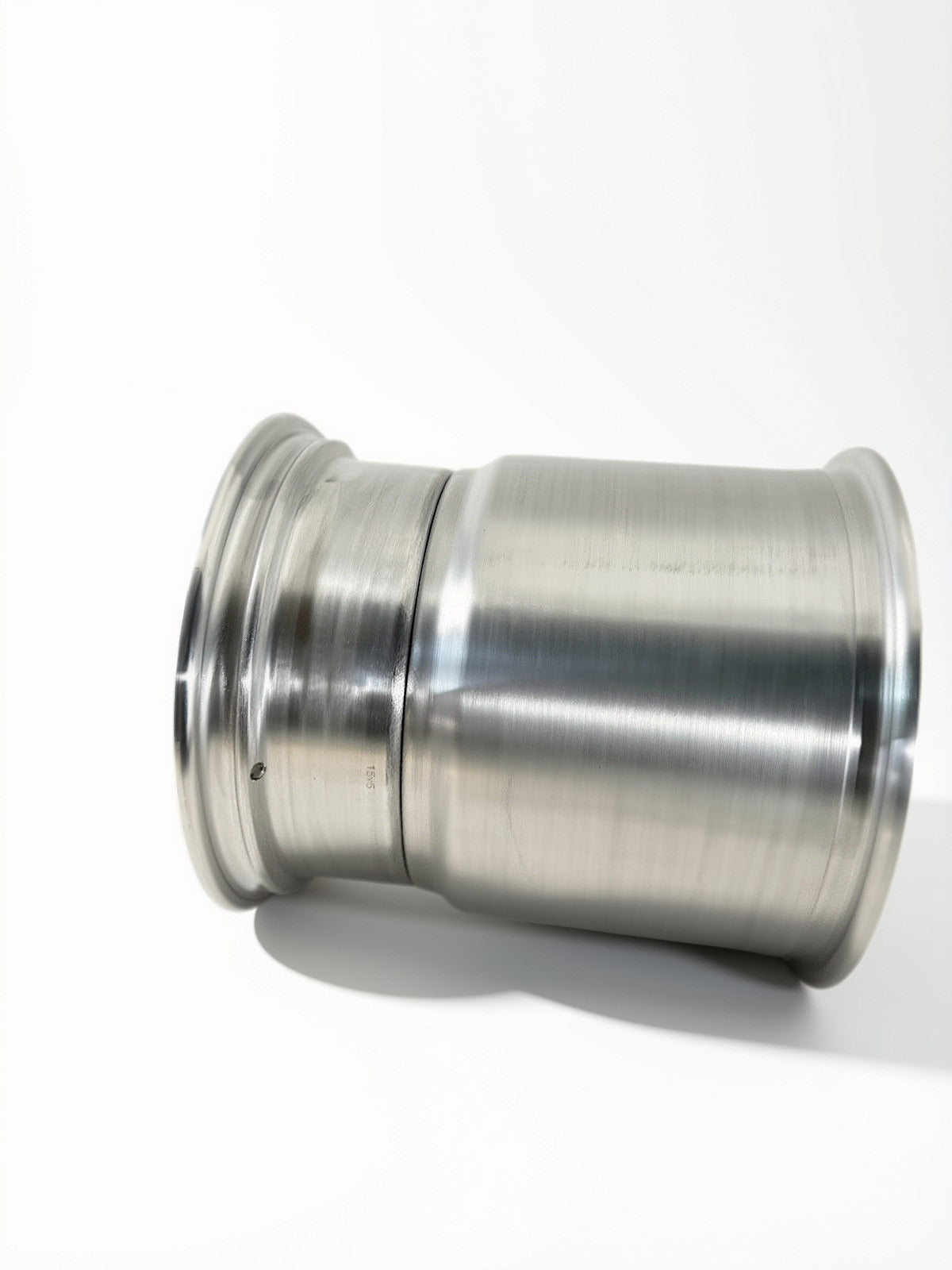

• Spun Aluminum Rim Halves: 3/16-inch-thick aluminum construction

• Proprietary Stainless Steel Hardware: Retno-specific stainless steel assembly bolts

• Reusable Sealing Gaskets: Special gasket material with a stainless steel reinforcing ring and silicone beads on both sides

• Precision Checked: Wheels are tested for dimensional accuracy

• Machined and Assembled in the USA

• Custom Options Available: Special widths, offsets, and finishes available by request

Wheel Set Specifications

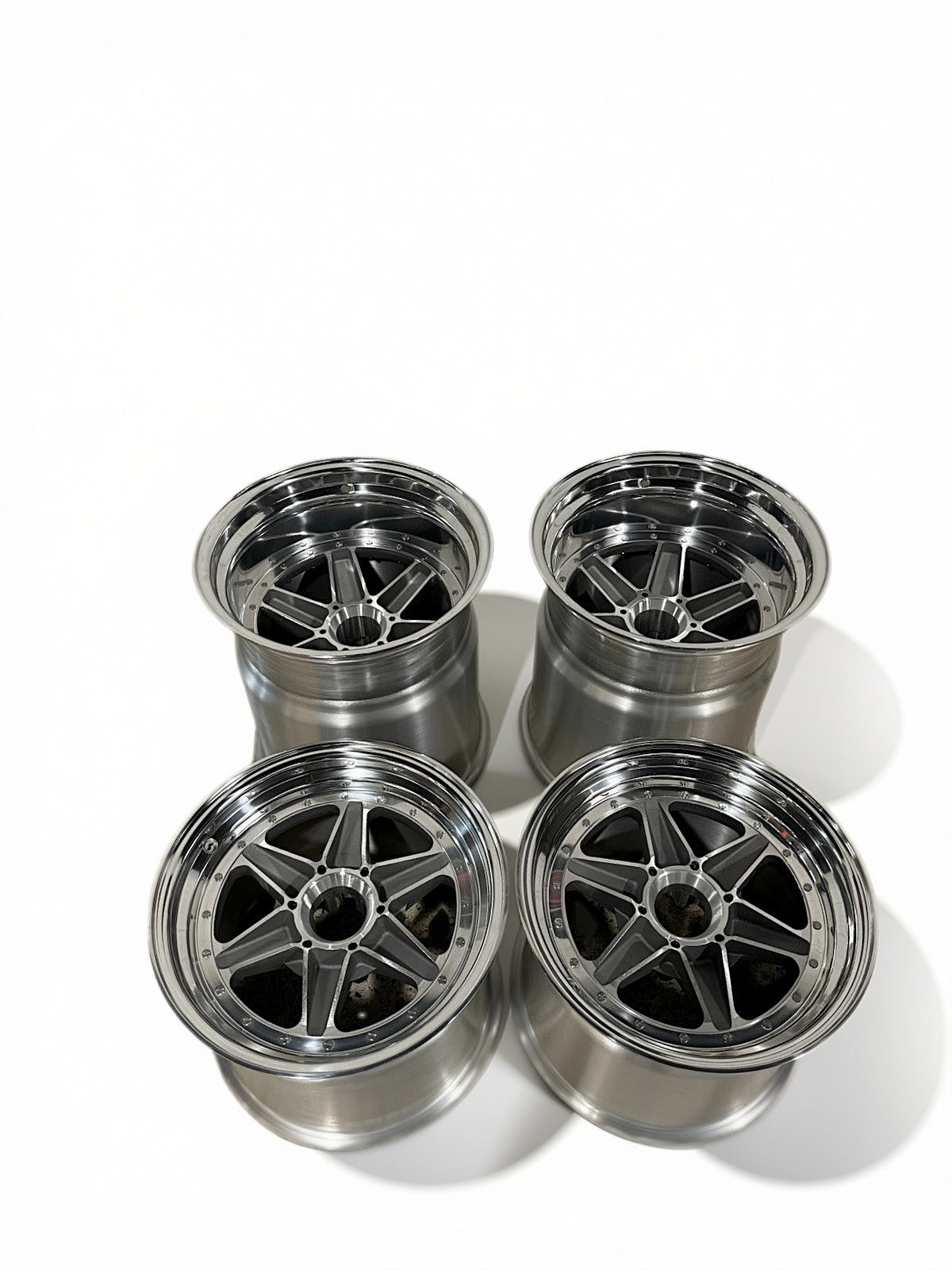

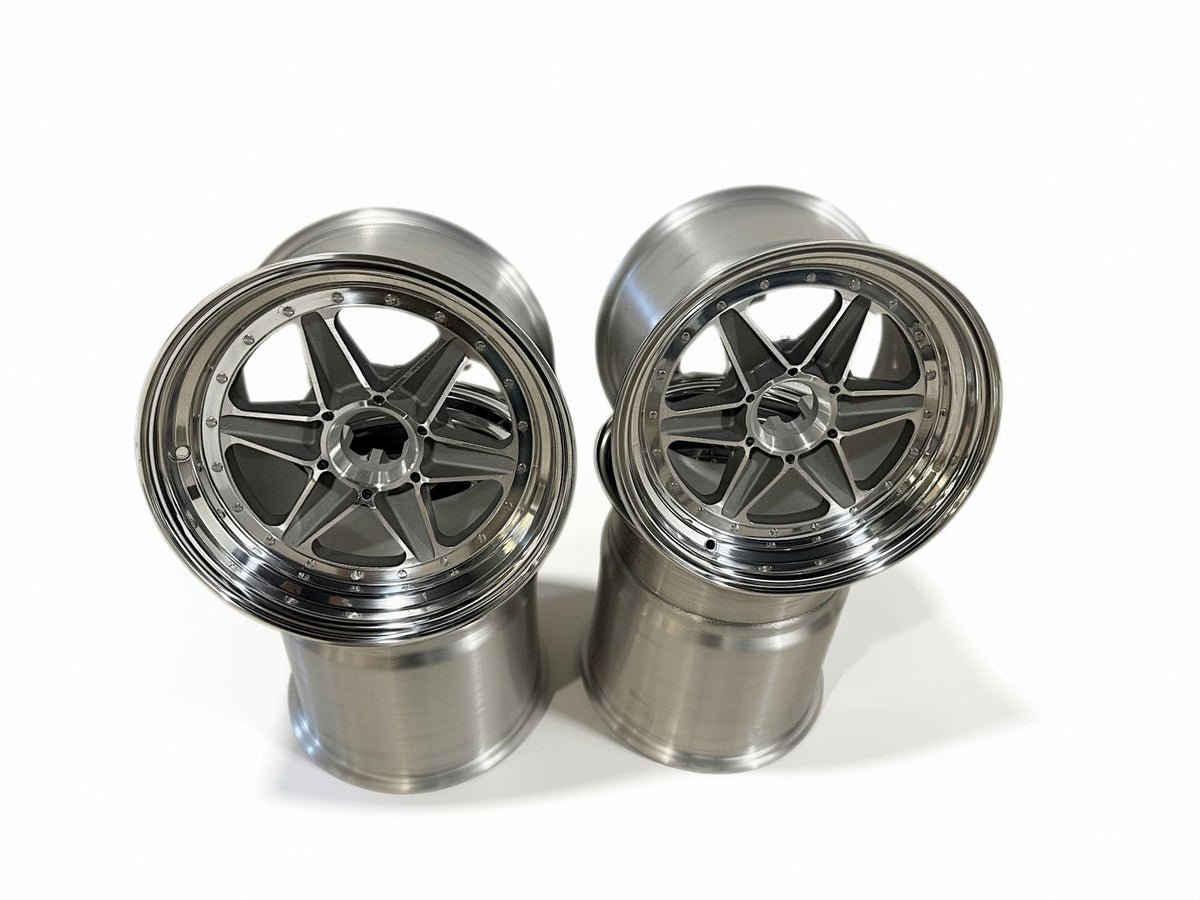

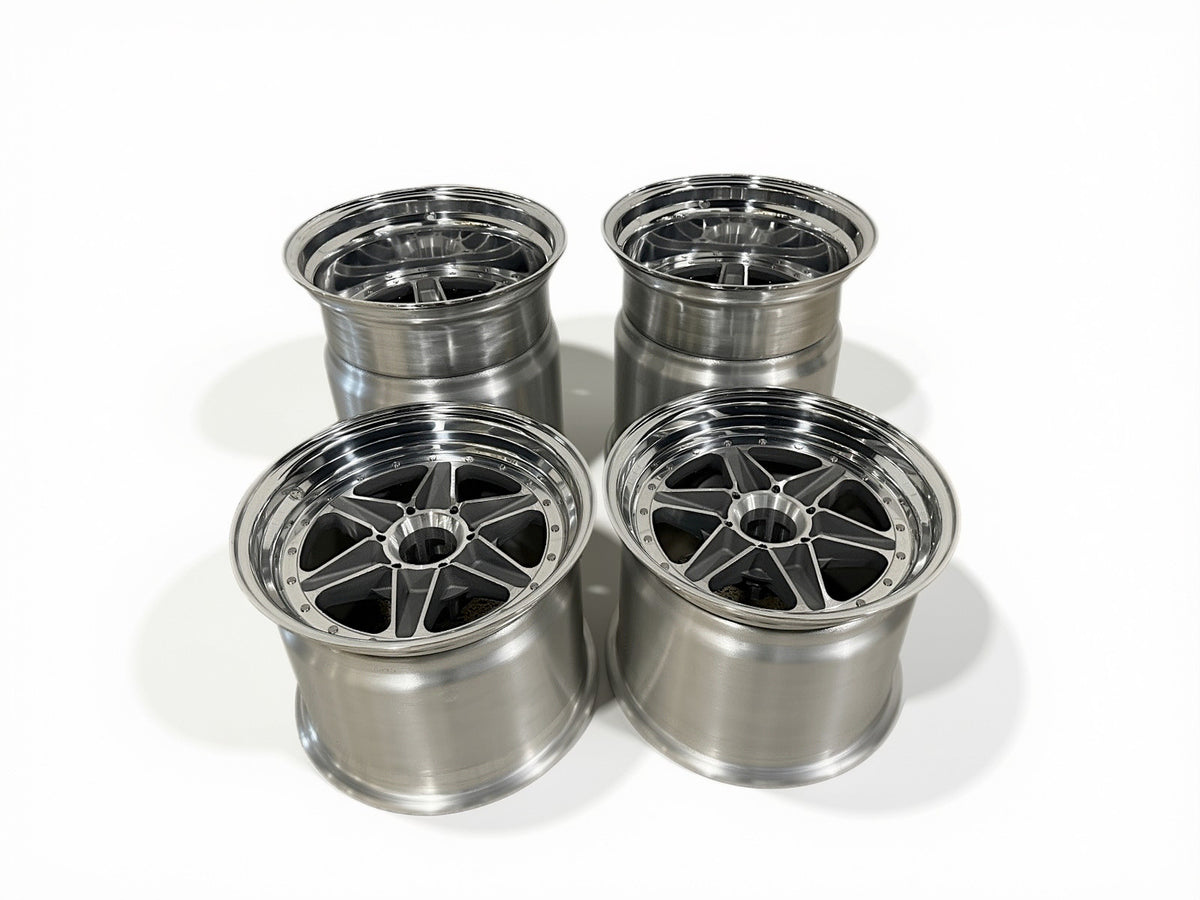

Complete Set: 4 Wheels

• Front Wheels: 15" diameter × 12" width (2 wheels)

• Rear Wheels: 15" diameter × 17" width (2 wheels)

• Front Backspacing: 7.25"

• Rear Backspacing: 7.30"

• Wheel Construction: 3-piece

• Center Material: A356 aluminum alloy

• Center Treatment: T6 heat-treated sand castings

• Rim Material: Spun aluminum

• Rim Thickness: 3/16"

• Assembly Hardware: Proprietary stainless steel bolts

• Sealing System: Reusable reinforced gaskets with silicone beads

• Application: Lola T70 MK3B reproduction and compatible specialty builds

Drive Peg Specifications

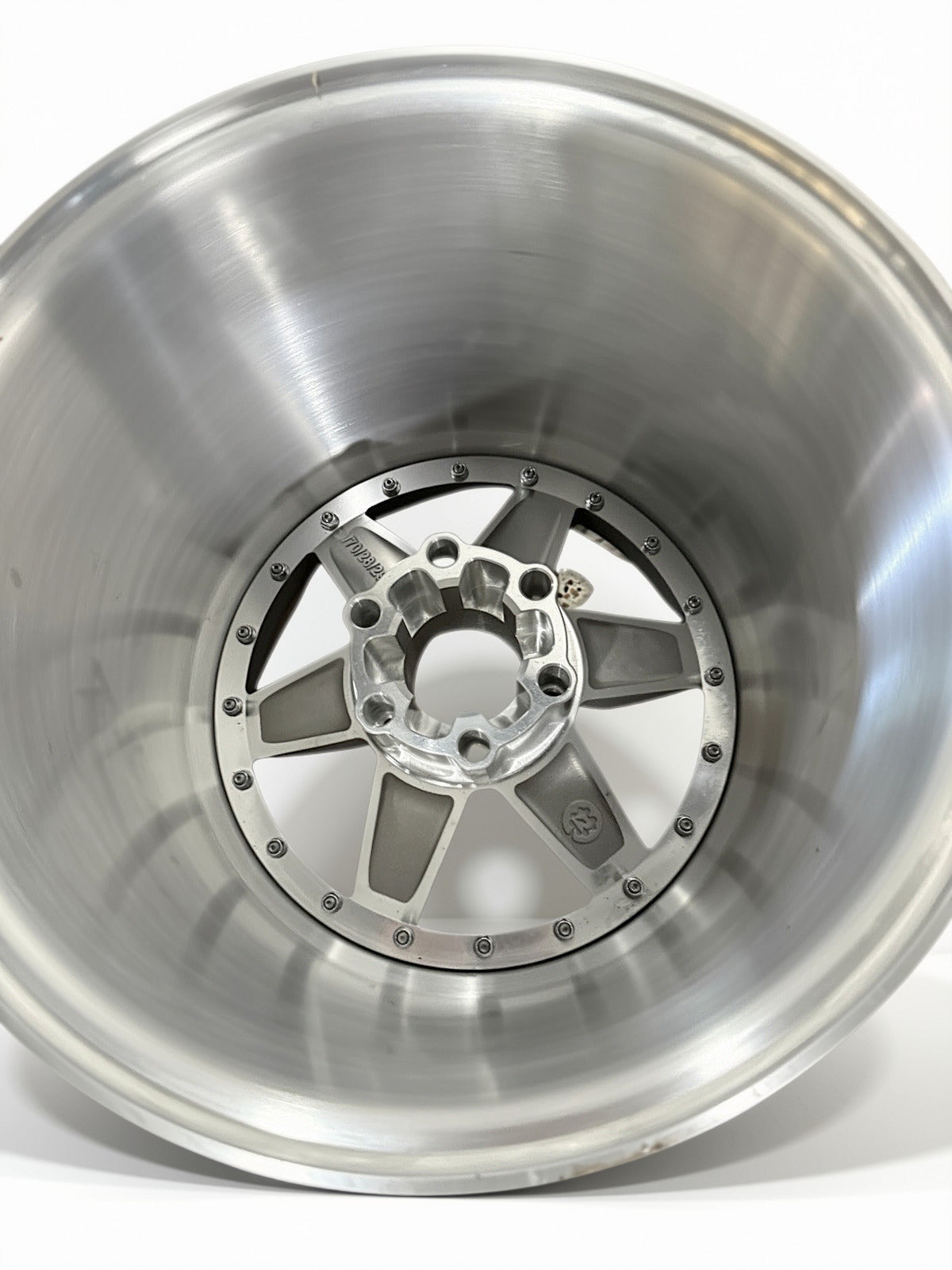

Both front and rear wheels feature six drive peg holes.

• Number of Holes: 6 per wheel

• Drive Peg Hole Diameter: 16.5 mm (0.650")

• Drive Peg Hole Spacing: 108 mm (4.25" center-to-center)

Please verify drive peg dimensions and compatibility with your specific hub and vehicle before ordering.

Customization Options

Retno offers custom-order options for customers seeking a more specific fit or appearance.

Available upon request:

• Custom wheel widths

• Custom offsets

• Custom finishes

• Alternative wheel configurations

Important: Custom sets will have raw aluminum centers unless another finish is specified by the buyer. Please discuss your preferred specifications and finish before placing a custom order.

Important Notes

• This listing is for four reproduction wheels: two 12" × 15" front wheels and two 17" × 15" rear wheels.

• The wing-nut knock-off fasteners are not included and are available separately upon request. Original-style thread patterns and correct wing angles are available.

• Confirm wheel dimensions, backspacing, hub compatibility, drive peg measurements, brake clearance, and vehicle fitment before ordering.

• For racing use, verify that the wheels meet the requirements of your intended application and racing organization.

Authentic Vintage Racing Reproductions by Retno

The Lola T70 MK3B is an iconic name in sports car racing. Retno's reproduction wheel set is designed for enthusiasts who value original dimensions, quality aluminum construction, and careful attention to detail.

Whether you're restoring a vintage racer or building a specialty car, these wheels offer a faithful reproduction with modern manufacturing and serviceable sealing components.

Retno — specialty racing components made with quality, precision, and over 15 years of wheel-making experience.
