Retno/Weber 48 IDA’s SBC Chevy complete set as used in Lola McLaren CanAm Race Chapparal USRRC.

This is a reproduction intake manifold of the very rare and exceptional Chaparral SBC Chevy 283, 327, 350, 366, 400 intake manifold set up with 4 down draft 48 IDA Retno style Weber carburators.

This is the same as the Chapparal one created by Jim Hall for his Can AM race cars.

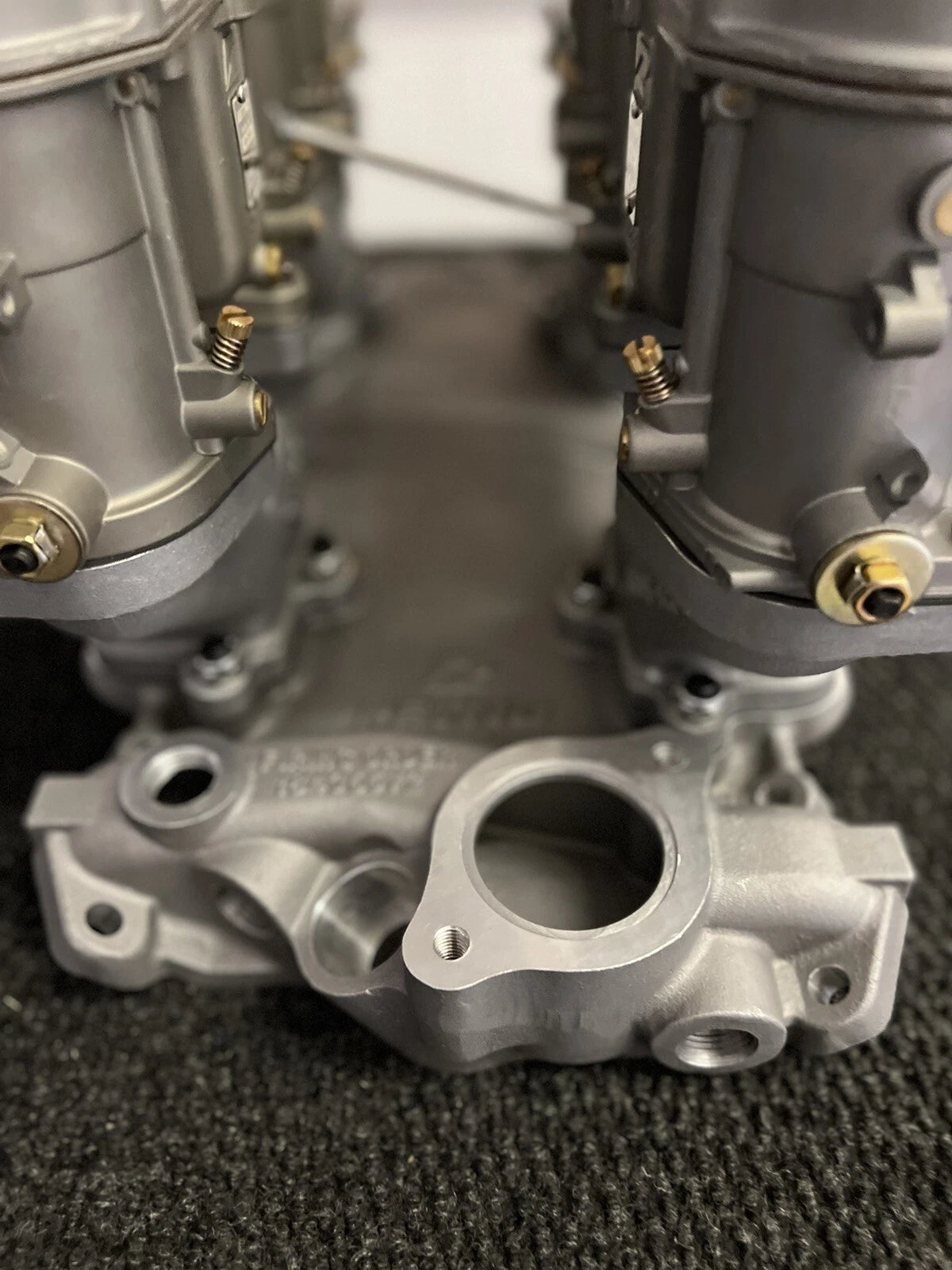

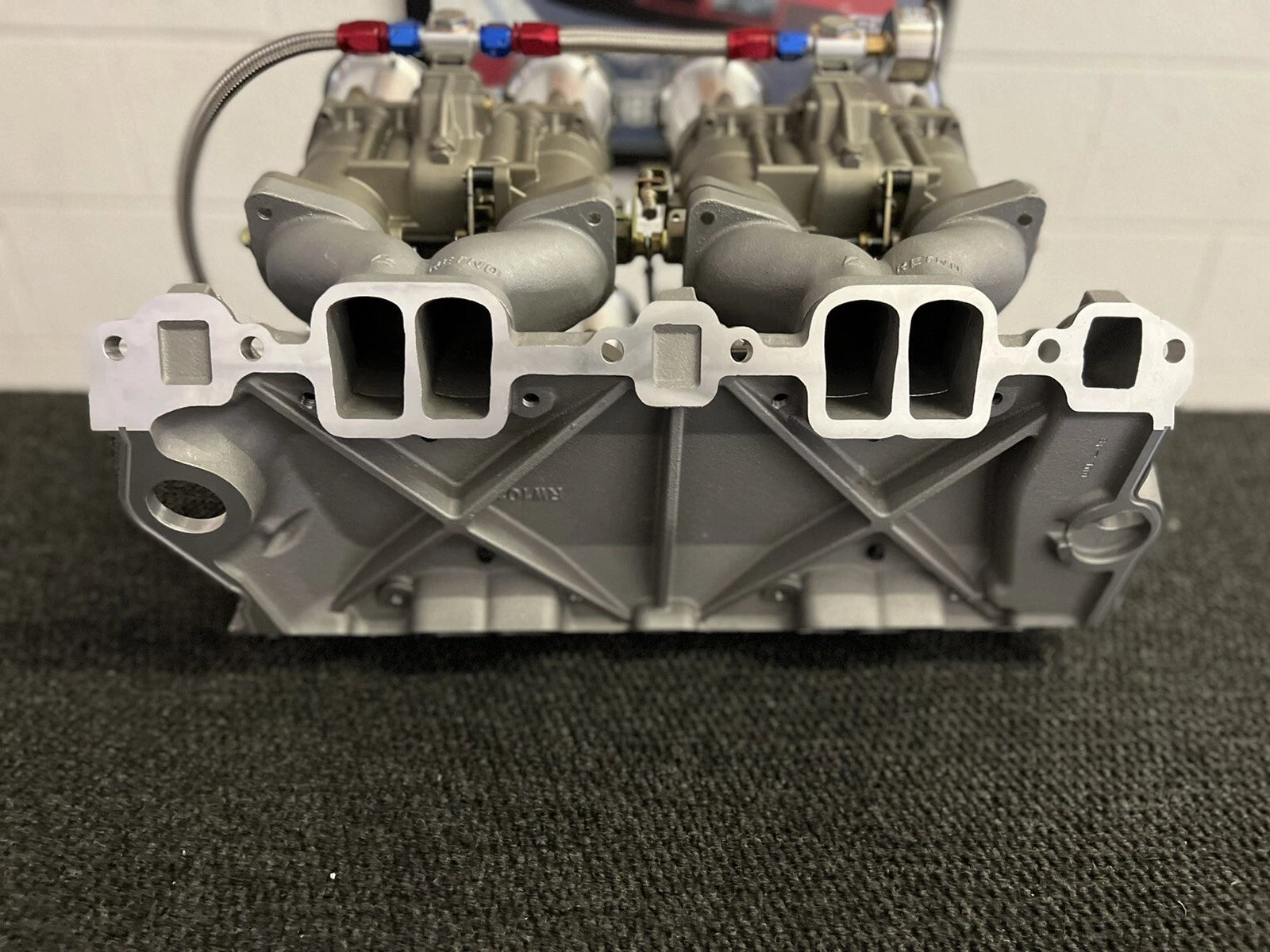

The original manifold used the intake plate from a 1963/64 Corvette fuel injection and installed runners to accept the Weber 48 Ida carburetors. We have made improvements to the manifold plate, adding a third mounting stud and matching ports on all runners, as well as other areas to add strength

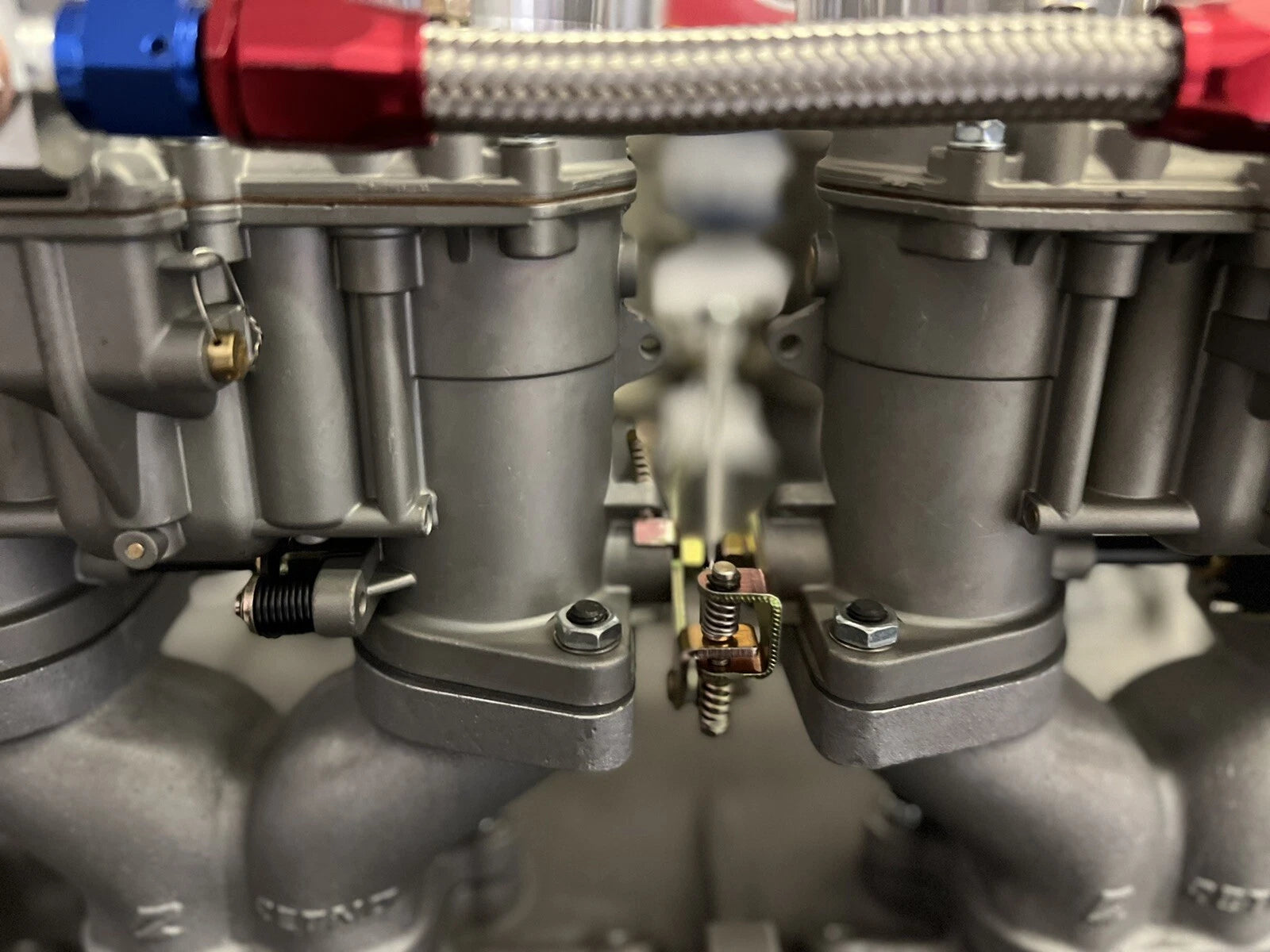

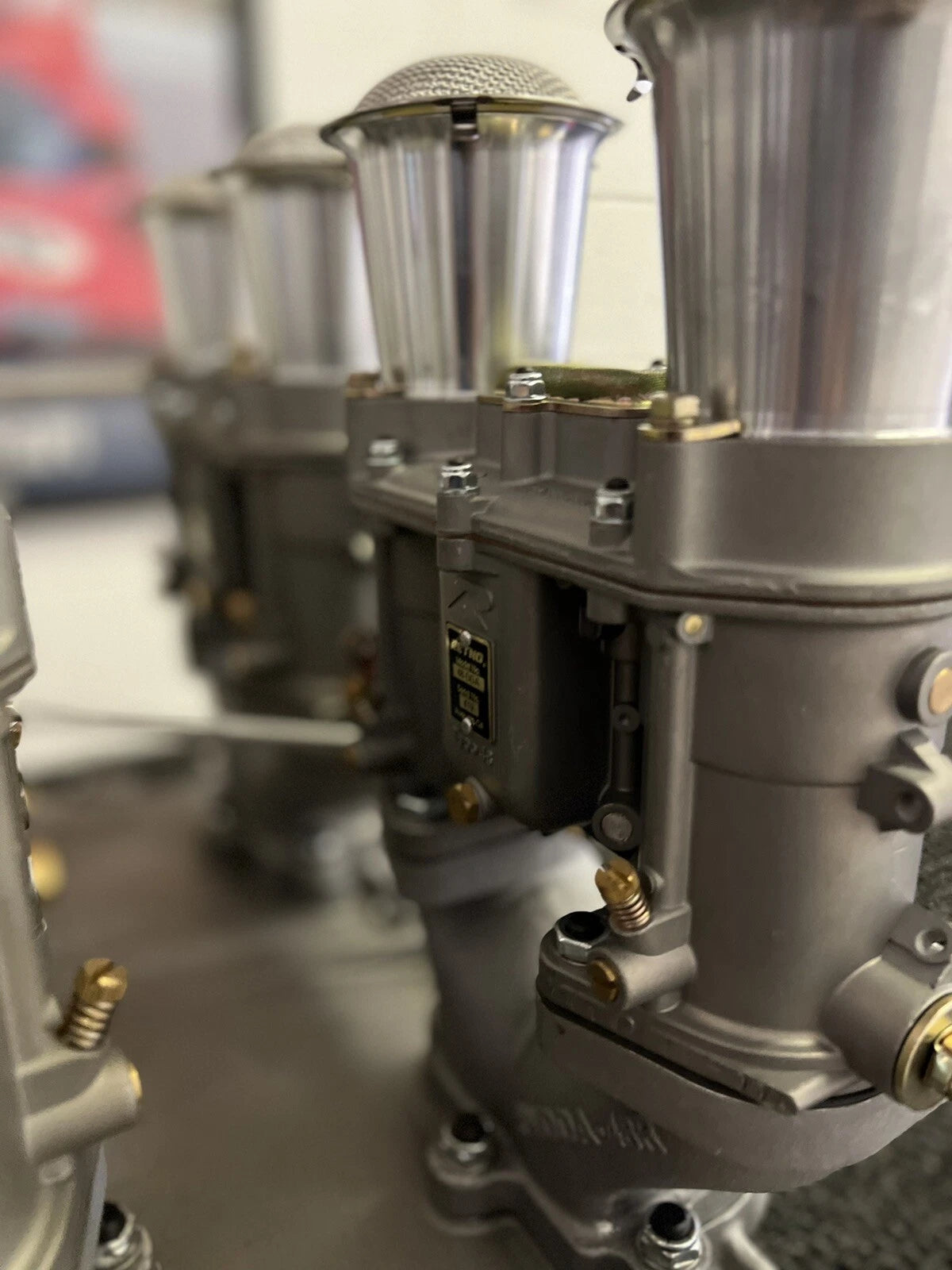

The carburetors are Retno down draft 48IDA’s reproduction of the Webers. These have been made using the best material and machining process available. They are just the best available. We went as far as putting suds to affix the upper parts of the carburetors, same as the early original ones. Di chromate coating finishing,

Teflon-coated shaft, brass floats, third idle hole, and many other improvements.

We stand 100% behind our product to be of the best quality and functionality.

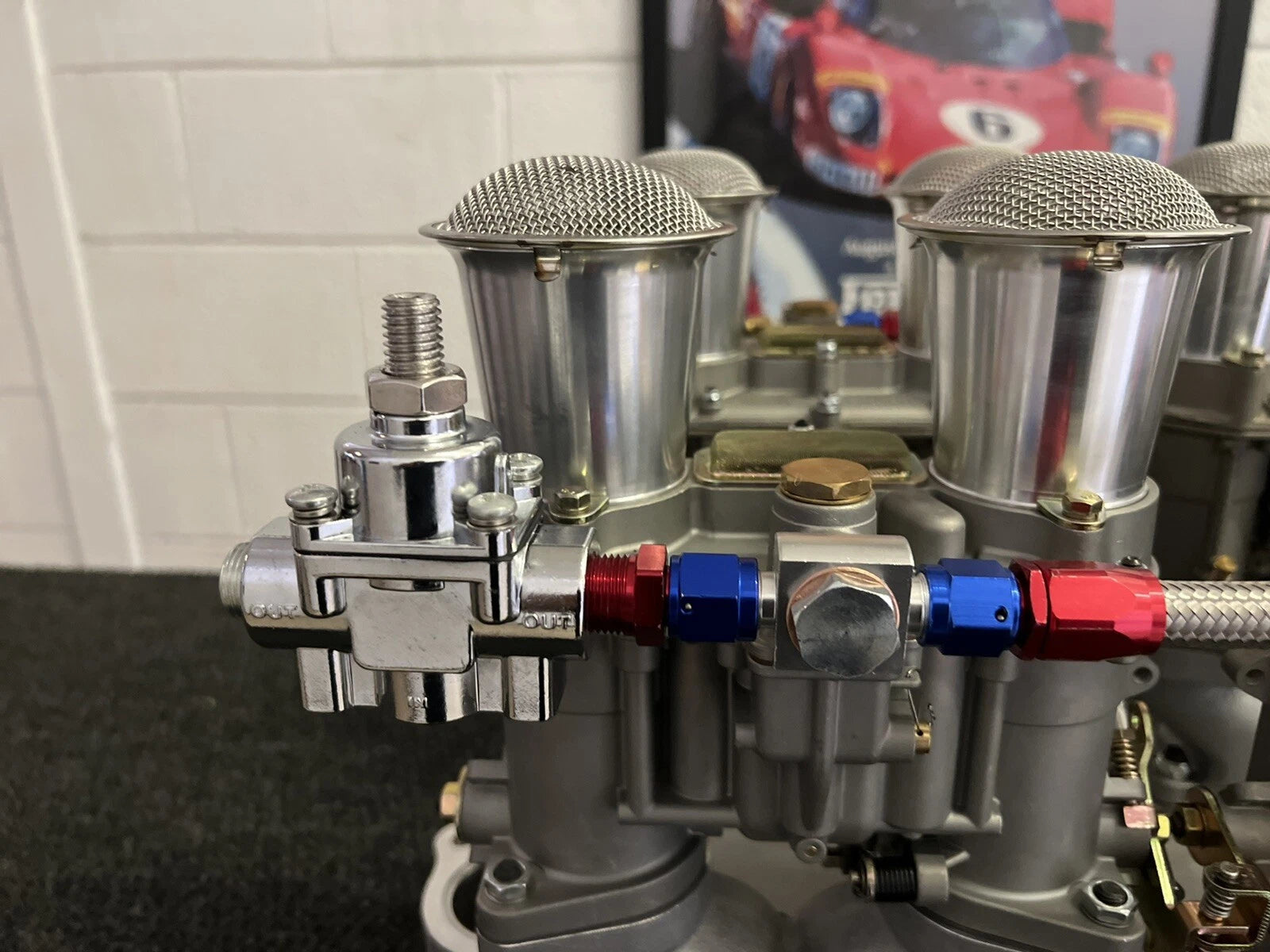

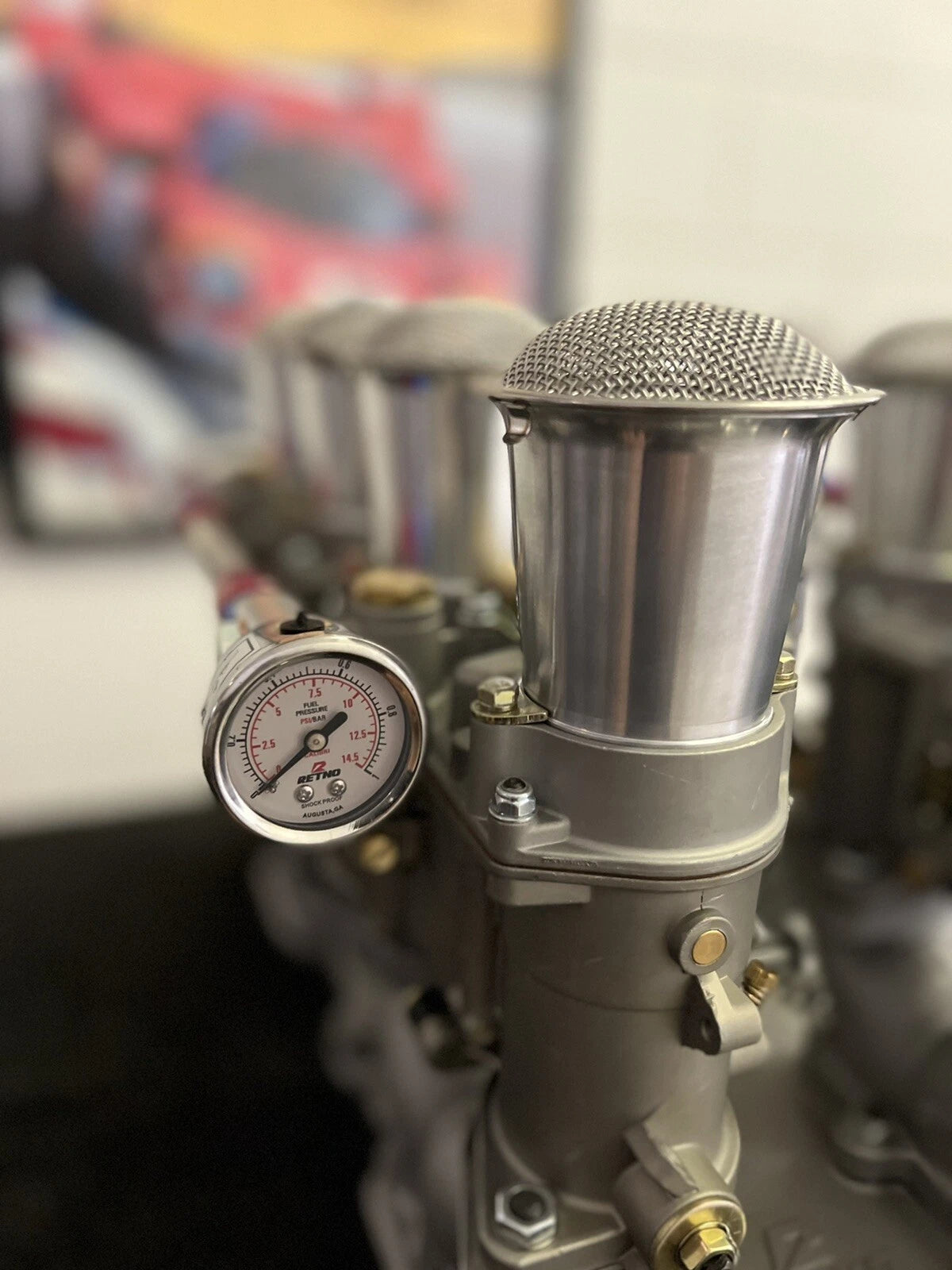

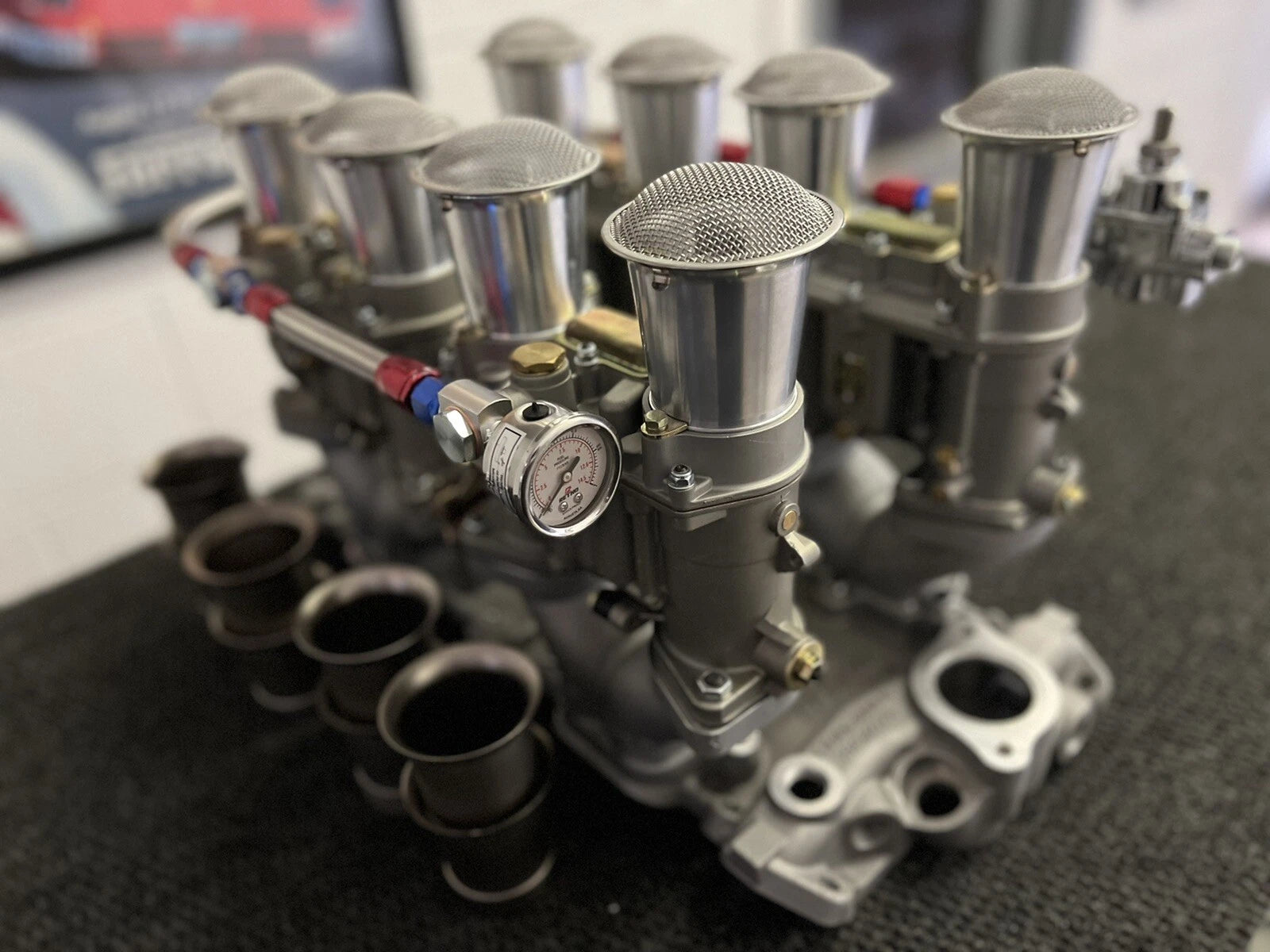

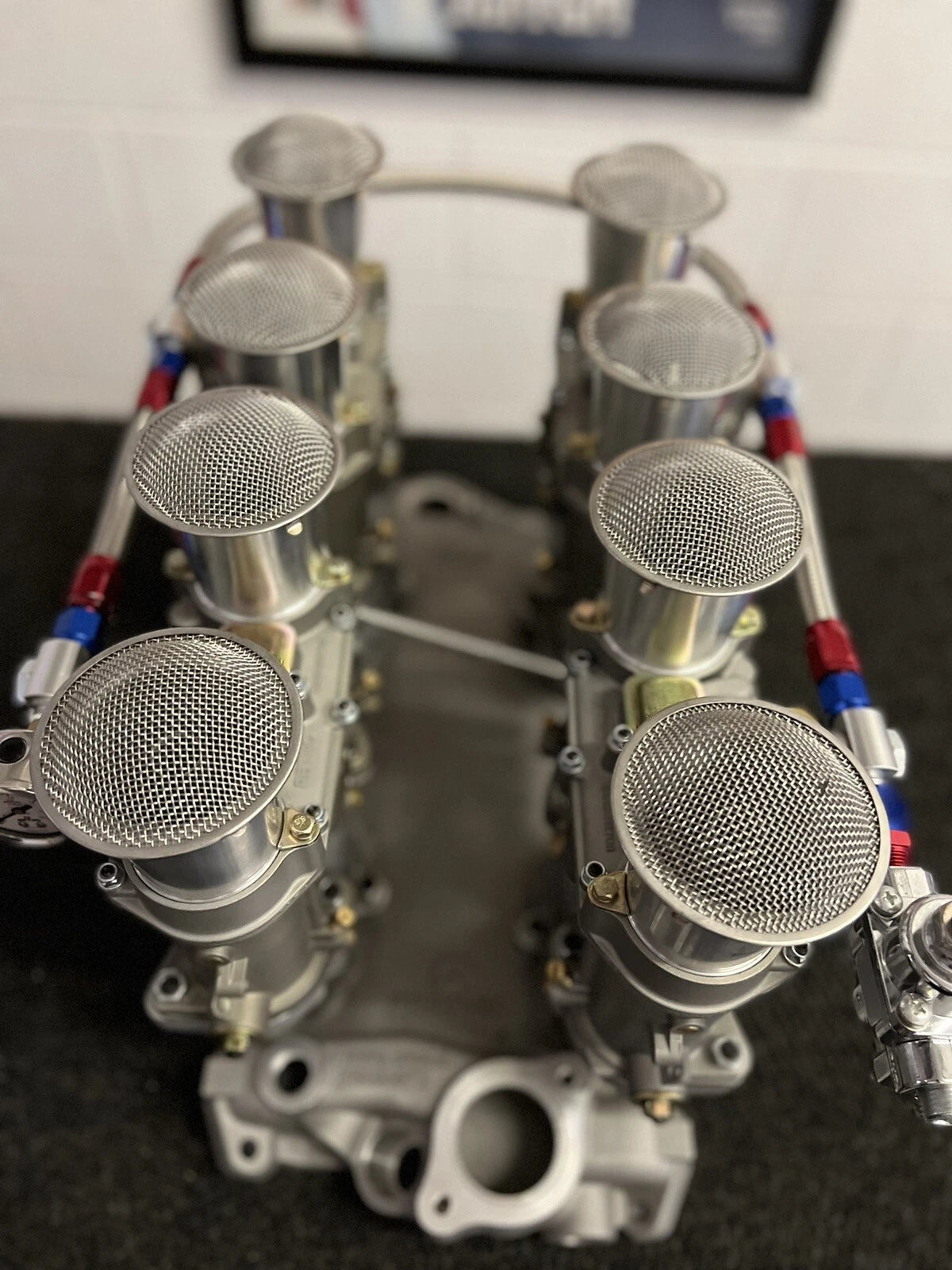

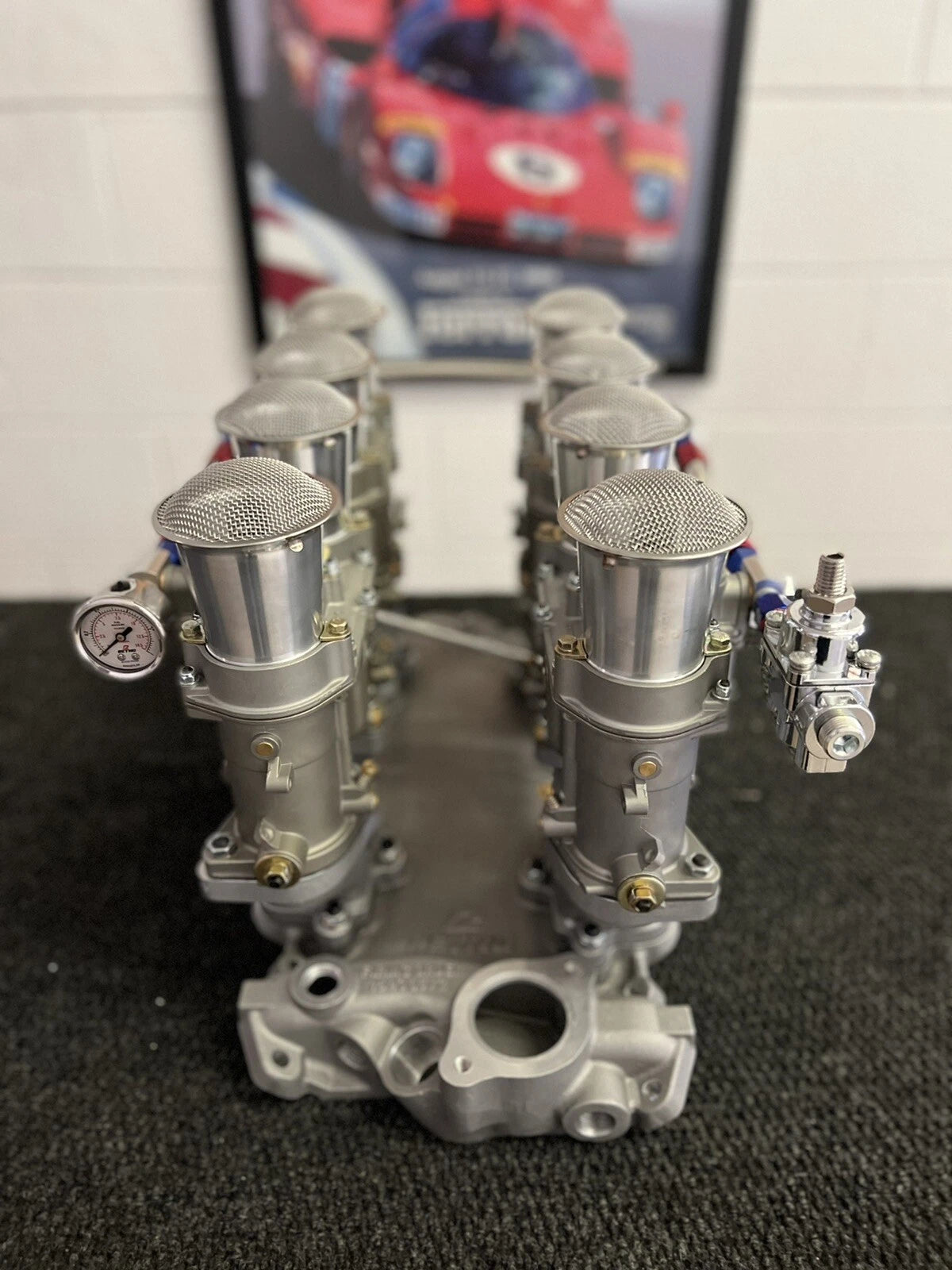

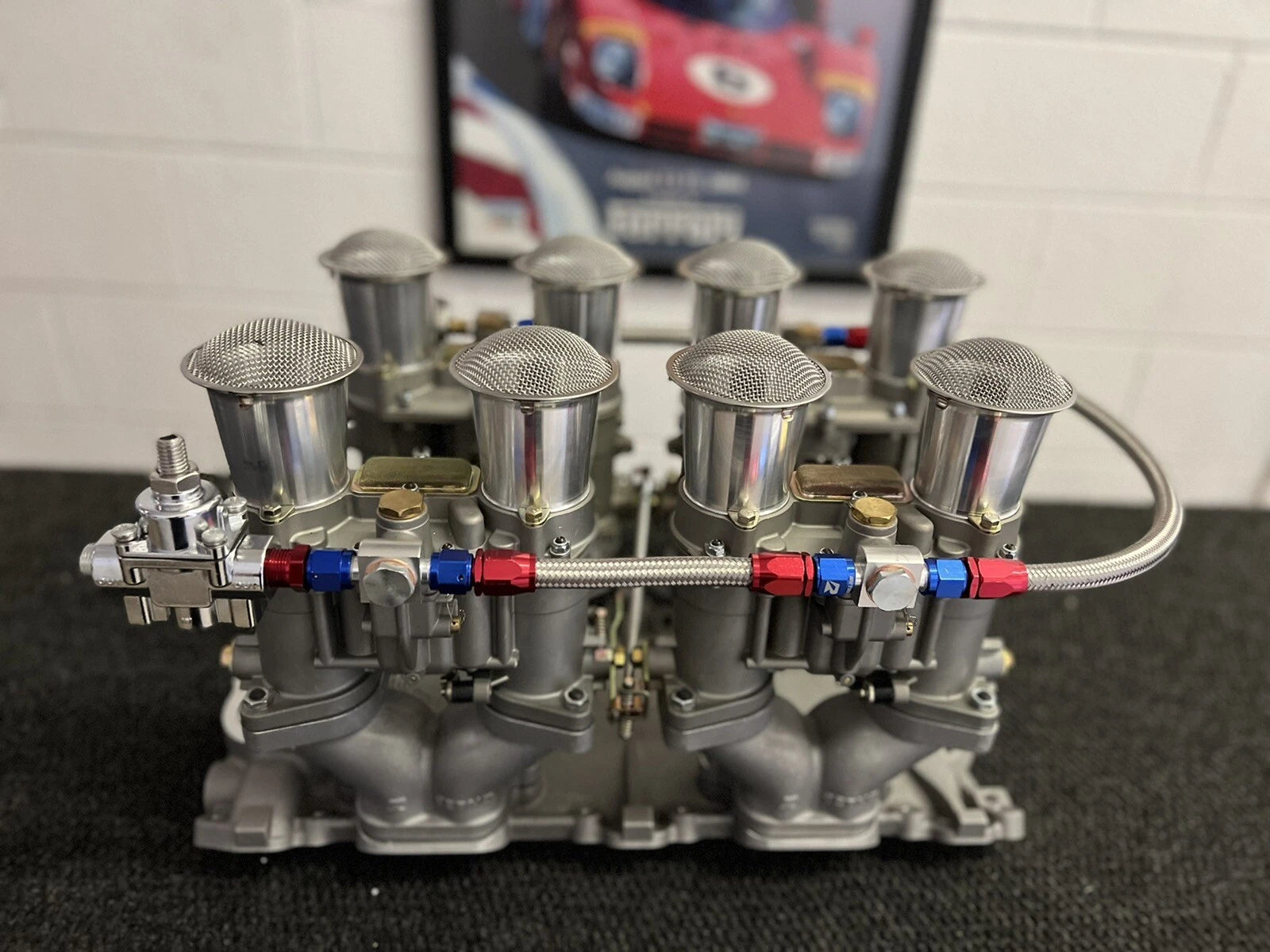

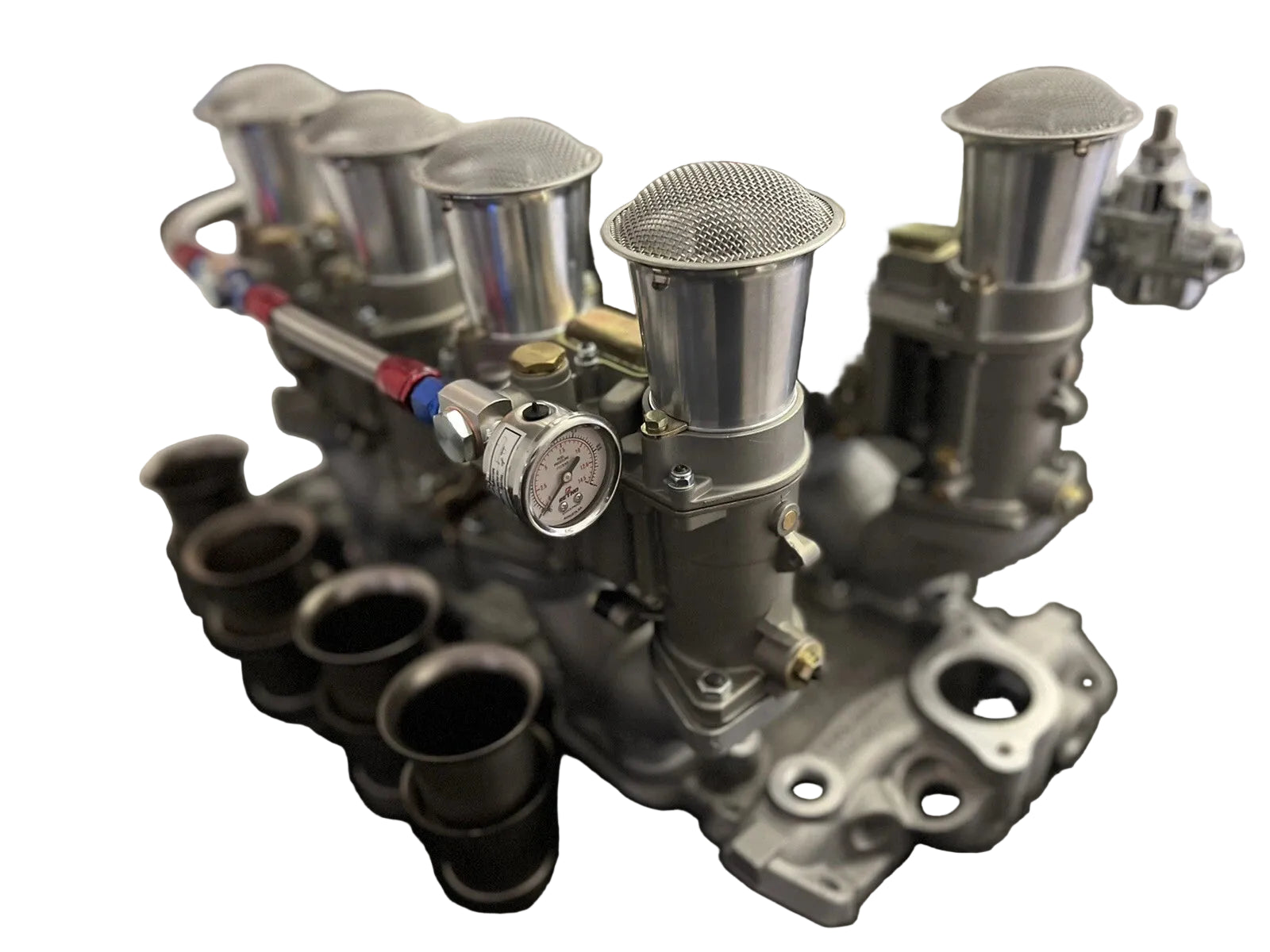

This unit comes complete as shown with linkages, lines installed, fuel pressure gauge and regulator, aluminum CNC air stack with screens.

This unit is complete.

The unit shown in the pictures is set up with short air horns 2.50”

You have a choice of :

1.50”

3.50”

We also offer custom jetting, air corrector, and imulsion tube sizes

Email you requested set up

Allow between 7 and 10 days for custom set-ups

The unit in the picture is set up as follows:

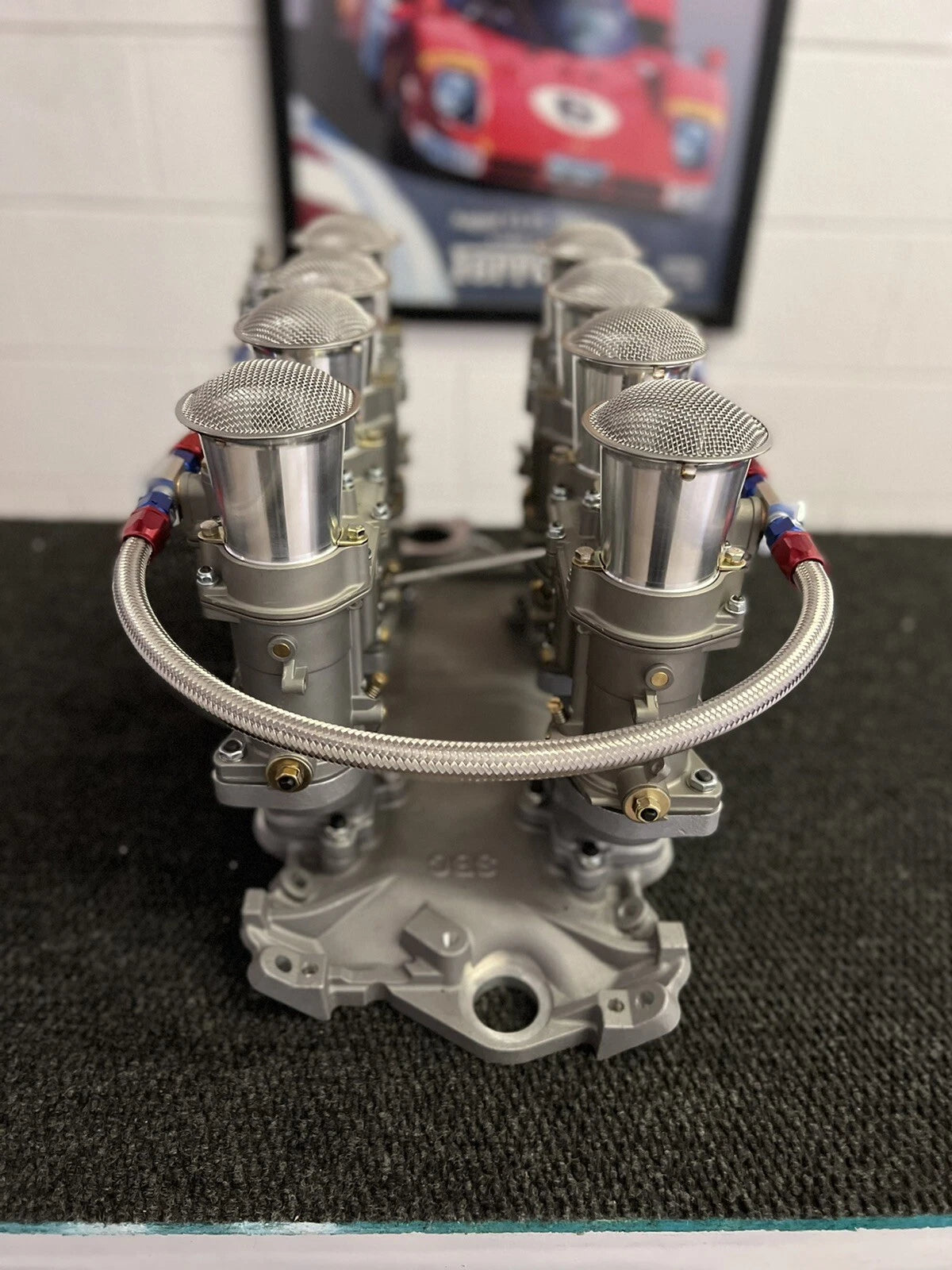

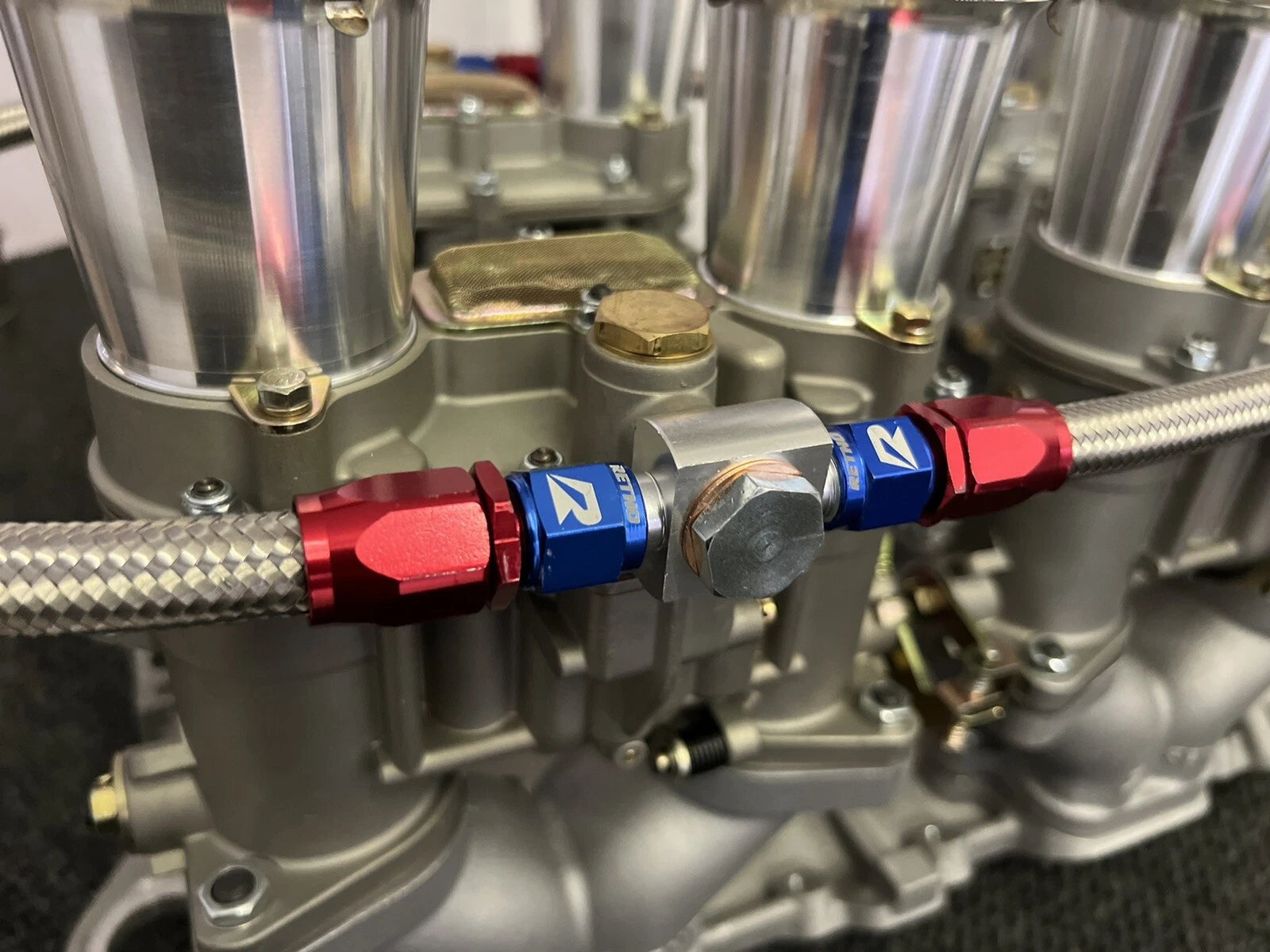

Braided stainless steel fuel lines.

An-6 red/blue anodized fittings

Stainless steel screens

Carburetors set up unless specified otherwise

Emulsion tube: F7

Idle jet:66

Main jet:135

Air corrector:120

Auxiliary Venturi:37

Venturi:10.5

Also included are a set of stainless steel velocity stacks
